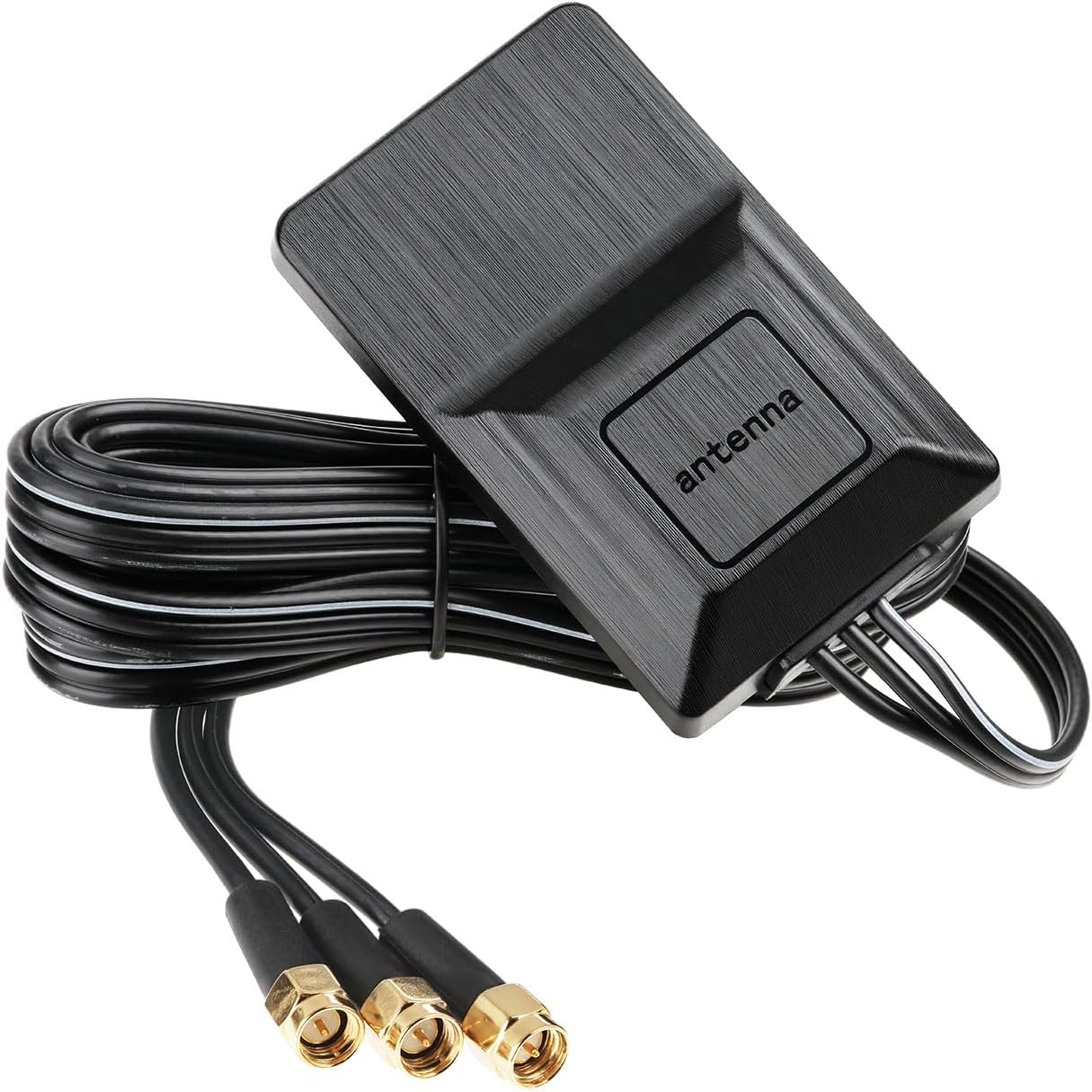

Bingfu Active GPS Navigation Antenna Triple System BeiDou BD GPS with Dual 4G LTE SMA Connector 3M RG174 Cable IP65 Automotive IoT High Gain
Product details
| Management number | 239251017 | Release Date | 2026/07/14 | List Price | US$9.60 | Model Number | 239251017 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification: GNSS Module: BeiDou: 1561.098±2.046MHz GPS: 1575.42±1.023MHz Bandwidth: >5MHz Gain: 4.5dBic (70x70mm ground plane) VSWR: ≤2.0 Polarization: Right-Hand Circular (RHCP) LNA Specifications: Gain: 28dB Noise Figure: <1.5dB Operating Voltage: 3.0-3.6V DC Current Consumption: ≤30mA @3.3V Dual 4G LTE Modules: Frequency Bands: 824-960MHz & 1710-2690MHz VSWR: ≤3.0 (Measured: 1.25-1.83) Efficiency: 43.16-48.61% Gain: 2.5dBi Mechanical & Environmental: Dimensions: 87x53x19mm (optimized for horizontal mounting) Cable: RG174, 3Meter/10ft Connectors: Triple SMA male Operating Temperature: -40°C to +85°C Storage Temperature: -40°C to +90°C Certifications & Compliance: RoHS compliant IP65 waterproof rating Vibration resistant (sine sweep 10-50Hz) Applications: Automotive fleet telematics Industrial IoT sensor networks Remote asset tracking in logistics Emergency response systems Packing List:1 x Combination Antenna
- Stable Navigation: Supports BeiDou navigation at approximately 1561 MHz and GPS at 1575.42 MHz for accurate positioning; dual independent 4G antennas ensure cellular redundancy; delivers reliable navigation for automotive and critical IoT applications
- Enhanced 4G LTE Coverage: Dual antennas provide peak gain up to 2.87 dBi; low VSWR under 3.0 with efficiency from 45% to 48% across key bands; optimized for wide frequency coverage from 824 to 960 MHz and 1710 to 2690 MHz; improves signal strength in IoT and vehicle settings
- Industrial Durability: IP65 rated ABS housing protects against dust and water; operates in extreme temperatures from -40 °C to 85 °C; vibration resistant tested from 10 Hz to 50 Hz; RoHS compliant for safe use in harsh automotive environments
- Easy Plug and Play: Low power consumption under 30 mA at 3.3 V; horizontal mounting optimization for simple installation; integrates quickly into car GPS navigation and IoT systems; reduces setup time for immediate deployment
- Complete Antenna Solution: Includes 3 M RG174 cable with SMA male connector; supports BeiDou and GPS with dual 4G for all in one communication; ideal for automotive GPS navigation antenna needs and industrial IoT redundancy
| ASIN | B0FL7NVY2C |
|---|---|
| Brand | BINGFU |
| Color | Black |
| Impedance | 50 Ohms |
| Unit Count | 1.0 Count |
| Manufacturer | Bingfu |
| Model Number | BFUSAN0555 |
| Mfr Part Number | BFUSAN0555 |
| Number of Items | 1 |
| AntennaDescription | Antenna Accessory |
| Warranty Description | Bingfu |
| Item Dimensions L x W x H | 7.1"L x 5.1"W x 0.8"H |
